MSH-119 Bar Code Wand

MSH_119_Barcode_Wand



The Opticon MSH-119 Bar Code Wand is a rugged pen type bar code reader.  It's stainless steel case and synthetic ruby ball tip give extra protection against any damage.  This ruby ball tip allows a consistent read performance by protecting the optics from dust and dirt.  With a smooth stroke it reads the barcode labels easily and doesn't damage the paper.
The Opticon MSH-119 is an undecoded barcode wand that needs to be connected to a Microbar NX decoder, but as a direct result of it's technology, the MSH119 will work with most decoders available in the market.
The presence of optical bandpass filters and electrical filters ensures that the MSH119 will read bar code labels in direct sunlight or under strong fluorescent lighting.   The MSH119 bar code wand is available with either a red or infra-red light source.
A range of resolutions from 0.10 to 0.40 millimeters is available to accommodate reading both high, low and medium density labels.
Because of it's durability and tilt angle of up to fifty degrees, this bar code wand is a perfect scanning device to be used in combination with hand held terminals.

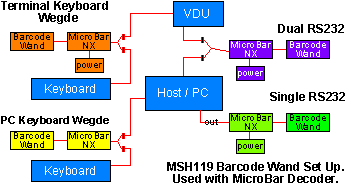

CLICK HERE FOR SET UP DIAGRAM (WHICH BARCODE WAND KIT DO YOU NEED?)

Opticon Bar Code Wand MSH-119 (Used with the MicroBar NX decoder)
MSH-119 Barcode Wand
PC Keyboard Wedge Kit
Kit includes:

123.00





  MSH-119 Barcode Wand
Single RS232 Kit
Kit includes:

152.00





MSH-119 Barcode Wand
Terminal Keyboard Wedge Kit
Kit includes:

POA
Dependant
on which
terminal
you are
connecting
to.

MSH-119 Barcode Wand
Dual RS232 Kit
Kit includes:

172.00






Features

Typical Applications
  • Reads barcodes in direct sunlight and strong fluorescent light.
  • Excellent read rates even at a tilt angle of fifty degrees.
  • Withstands extreme conditions and harsh enviroments.
  • Ruby tip allows for easy reading without damaging barcodes.
  • Visible LED model (RED) for general use.
  • Stainless steel with sprung-loaded tip and cable restraint.

to the top   to order page
prices and specifications may change without notice
