moxa technology

Below you will find a range of MOXA serial boards.
Please select by clicking on the appropriate button, or scroll for full list and information.

new_flash


C320_Turbo_Intelligent    C168H_Smartio_Family    to_compatibility_chart    to_order_info






MOXA SERIAL BOARDS - O/S COMPATIBILITY


C320 Turbo
Expandable Intelligent

C168H
8 Port Dumb

C168H/PCI
8 Port Dumb PCI

C104H
4 Port Dumb


moxa technology

GUIDE

C= Compatible to
the operating system.

V= Driver shipped
with product.

R= By request.








AT & T Unix SVR4.2 V V




IMS Multiuser DOS   C   C
Linux 2.0 R R   R
Mitrux SVR4.2 V V
Windows NT 3.51/4.0 V V V V
Windows 95 V V V V
Windows 3.x V     V
MS DOS V V   V
MUMPS       C
OS/2 R
PICK OS   C   C
QNX R C   C
SCO Unix V V   C
SCO Xenix V C   C
Sunsoft Solaris x86 V     C
Unixware SVR4.2 V V
Free BSD   C   C


EXPANDABLE INTELLIGENT SERIAL BOARDS DESKTOP SOLUTION
Intellio C320 Turbo Multiport Controller
The C320 Turbo is an expandable intelligent multi-port serial controller, which is available in 8, 16, 24 and 32 port configurations. The C320 Turbo complies to ISA specification and is also compatible with EISA specification.
Up to four C320 Turbo Multiport controllers can be installed in a single host computer (if four ISA slots are available), providing up to 128 (4 x 32) serial communication channels.
DESKTOP SOLUTION

8 PORTS

16 PORTS

24 PORTS

32 PORTS

C320 Turbo
Intelligent
Control
Board

click for compatibility

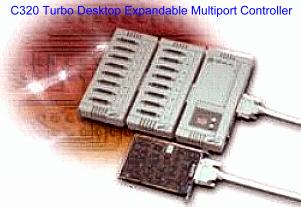

click for DESKTOP PICTURE

2m
Cable





CPU
Module




8 Port Module

8 Port Module

8 Port Module

8 Port Module



8 Port Module

8 Port Module

8 Port Module



8 Port Module

8 Port Module



8 Port Module

      £ 490.00 £ 625.00 £760.00 £899.00
INFO: The C320 Turbo consists of an intelligent control board that resides in the host computer which connects via a cable to flexible external modules.  The Desktop solution consists of: one intelligent control board, one 2m cable, one CPU module, and then 1 - 4 UART modules.(see price guide).



EXPANDABLE INTELLIGENT SERIAL BOARDS RACKMOUNT SOLUTION
Intellio C320 Turbo Multiport Controller
RACKMOUNT SOLUTION

8 PORT

16 PORT

24 PORT

32 PORT

C320 Turbo
Intelligent
Control
Board


click for compatibility

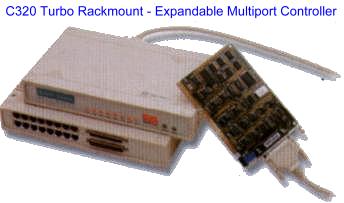

click for RACKMOUNT PICTURE

2m Cable







8 Port Basic
Module






8 Port Basic Mod
plus
8 Port Extension


8 Port Basic Mod
plus
8 Port Extension
plus
8 Port Extension

8 Port BasicMod
plus
8 Port Extension
plus
8 Port Extension
plus
8 Port Extension

16 Port Basic
Module


8 Port Basic Mod
plus
16 Port Extension

16 Port Basic Mod
plus
16 Port Extenion



£501.00

£645.00 £790.00

£935.00

INFO: The C320 Turbo consists of an intelligent control board that resides in the host computer which connects via a cable to flexible external modules. The Rackmount solution consists of one intelligent control board, one 2m cable, a basic module (of either 8 or 16 ports), and then 1-3 extension modules (see price guide)

to_the_top


NON-EXPANDABLE DUMB SERIAL BOARDS
Smartio Family
The Smartio Family consists of the C168H, C168H/PCI and C104H boards.
The Smartio C168H is a half size board with surface mount technology which provides a high speed, 921.6k bps, multi-serial solution for PC/AT and compatible systems.  The Smartio C168H provides 8 asynchronous serial communication channels which allow you to connect to any serial device - such as modems, terminals, printers etc.  It has a switchless and jumperless design and is easily configured by software.
The Smartio C168H/PCI  is a PCI compatible board, providing a multi-serial solution for the PCI bus.  One of the advantages of the PCI design is that the system resources (I/O space, IRQ) are assigned automatically by the system.  This makes the board installation easier because there is no need to check the I/O space and interrupt resource.
The Smartio C104H provides 4 RS-232 communication channels.
Description Interface Option Images Total Price

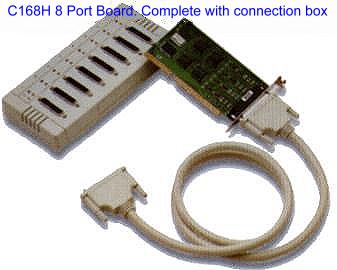

8 Port Board
C168H
click for compatibility
OPT8A
OPT8B
OPT8C
RS232 connection box - DB25 females
RS232 connection box - DB25 males
RS232 octopus cable   - DB25 males only
click for PICTURE

£205.00
£205.00
£155.00

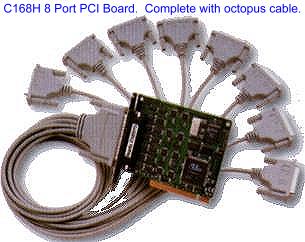

8 Port Board PCI
C168H/PCI
click for compatibility
OPT8A
OPT8B
OPT8C
RS232 connection box - DB25 females
RS232 connection box - DB25 males
RS232 octopus cable   - DB25 males only
click for PICTURE

£275.00
£275.00
£225.00

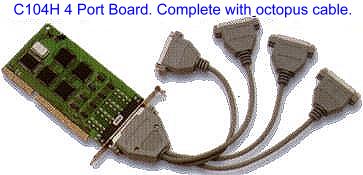

4 Port Board
C104H

click for compatibility
  Includes octopus cable: DB25 males only:

click for PICTURE

£90.00


ORDERING INFORMATION
At present Craystone aren't able to offer credit terms on Moxa serial expansion boards, therefore payment is required with order. We hope this isn't too much of an inconvenience.   If you'd like to make a purchase, please visit our order page
to_order_page - Thank You.
